Lift table 1-phase AX Hymo

"HYMO" Hydraulic lift table in solid design for easy adjustment to the tight working height. Intended for max 40 lift/hour. Lifting capacity 1000 or 2000 kg. Operated with a keypad unit equipped with a deadmans handle. The lift table is equipped with a pinch guard for maximum safety. 9941-0201 with control panel 24 V. Enclosure protection class IP 54.
The lift table is CE marked, equipped with cylinder mounted lowering valve and conforms to EN1570.
The lift table can also be customised.
Powder coated in blue RAL 5019. The tables are supplied fully tested.


Accessories:
Mobile base. This makes it easy to move the table.

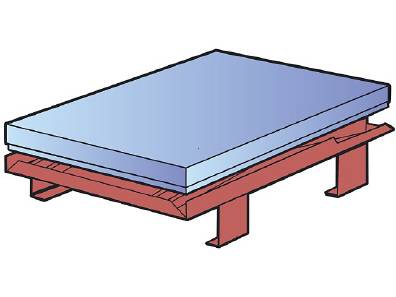

Fork entry base.This makes it easy to move the table with the help of fork lift truck. Facilitate loading the table with the help of a support arm stacker.

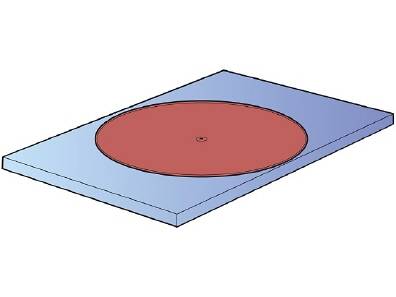

Turntable. On special order the lift table can be delivered with a turntable, which aids accessibility. When unloading or loading large pallets you first work with one half and then turn the pallet 180°.



Art. no. 9941 (-0102) (-0201) (-0300)
Hymo No AX 10-8/6-800 AX 10-8/6-800 AX 20-8/6-800
Max. load kg 1000 1000 2000
Table size mm 1200×800 1200×800 1350x800
Lift movement mm 800 800 800
Own height mm 200 200 220
Lift time approx. sec 32 19 25
Motor voltage V 230 1-phase 400 3-phase 400 3-phase
Motor output kW 0.55 0.72 1.4
Weight kg 165 165 200

Accessories:
Mobile base 9941 (-1209) (-1209) (-1407)

Fork entry base 9941 (-1308) (-1308) (-1506)



Get a quote

  • Lift Table, Lift Time 32sec £ 1600.00 (9941-0102)
  • Lift Table, Lift Time 19sec £ 1718.15 (9941-0201)
  • Lift Table, Lift Time 25sec £ 2215.39 (9941-0300)
  • Mobile Base for Lift Table, Lift Time 32sec £ 354.46 (9941-1209)
  • Mobile Base for Lift Table, Lift Time 19sec £ 354.46 (9941-1209)
  • Mobile Base for Lift Table, Lift Time 25sec £ 389.92 (9941-1407)
  • Fork Entry Base for Lift Table, Lift Time 32sec £ 238.28 (9941-1308)
  • Fork Entry Base for Lift Table, Lift Time 19sec £ 238.28 (9941-1308)
  • Fork Entry Base for Lift Table, Lift Time 25sec £ 267.81 (9941-1506)
