BT Levio
"BT" Levio Motorised pallet truck. A small versatile pallet truck equipped with separately magnetised motors specially designed for light applications. 208° steering makes the truck easy to manoeuvre in confined areas. An integrated charger is standard, maintenance-free battery 2x12V/63Ah.
LWE 130 is intended for horizontal pallet handling. Suitable for among others convenience goods trade, manufacturing industry and on vehicles with platform lifts. Truck charging available as an option.

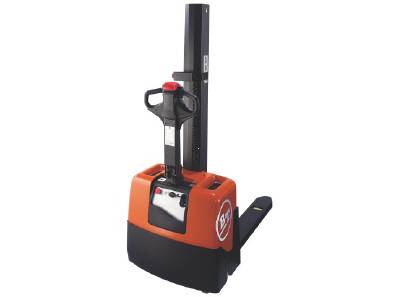

HWE 100 is ideal for order picking, horizontal transport, light stacking and as an ergonomic work-table. Max. lift height 1580 and 2000 mm.
| Art. no. | 11225 | (-0105) | (-0204) | (-0303) |
| BT | No | LWE 130 | HWE 100 | HWE 100 S |
| Lifting capacity | kg | 1300 | 1300 | 1300 |
| Max. lift height | mm | 205 | 1580 | 2000 |
| Fork, L x W | mm | 1150 x 156 | 1150×156 | 1150×156 |
| Chassis width | mm | 700 | 700 | 700 |
| Height above lowered fork | mm | 85 | 85 | 85 |
| Swivel castor, Vulkollan | mm | Ø100x40 | Ø100x40 | Ø100x40 |
| Fork wheel, Vulkollan | mm | Ø85 | Ø85 | Ø85 |
| Drive wheel, Vulkollan | mm | Ø250x60 | Ø250x60 | Ø250x60 |
| Driving speed, without/with classified load | H | 5,5/4 | 5,4/4,3 | 5,4/4,3 |
| Battery capacity | Ah | 63 | 63 | 63 |
| Battery weight | kg | 2 x 23 | 2 x 23 | 2 x 23 |
| Weight without battery | kg | 200 | 420 | 420 |
| Pack. | qty | 1 | 1 | 1 |
Please contact us for a price
