Open shelf stand where each section can be loaded with 1000 kg. Uprights of heavy-duty U-sections and shelves with 35 mm double folded edges. Max. distributed load per shelf 80 kg. As an accessory there are reinforcing strips that increase the load capacity by 50 % to 120 kg per shelf. End stays on sides and a back cross stay give very good stability to the shelf stand where the shelves can be moved in 35 mm increments for optimal utilization.
Uprights enamelled in light grey RAL 7035 with galvanized shelves, end stays and back cross stay.
Dimensions 1996 x 1000 x 400 mm for start section and 1996 x 965 x 400 mm for add-on section.


NOTE. The uprights should be anchored to the floor or wall. Floor brackets included.


13053-0108 start section includes 5 shelves.
13053-0207 add-on section includes 5 shelves.


NOTE! Bins not included.


13053-0306

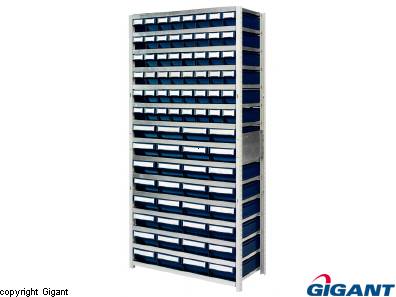

Shelf stand includes 10 shelves, holds 36 Arca Module bins 9068 (1017-3706: blue, 1017-3755: yellow, 1017-3771: red).
13053-0405 shelf stand includes 15 shelves, holds 48 Arca storage containers 9111 (7747-0102: blue, 7747-1100: red) + 32 Arca storage containers 9113 (7747-0201: blue, 7747-1506: red).
13053-0504 shelf stand includes 13 shelves, holds 72 Arca bins 9074 (10081-1009: 36 yellow + 10081-1108: 36 blue).
Dimensions 2130 x 930 x 260 mm and can be loaded with 80 kg distributed load per shelf.


Available as accessories:
extra shelves in a 2-pack and extra floor bracket to secure uprights to the floor, shelf hook for angling the shelf, strip for the front edge and reinforcing strips.

Art. no. 13053 -0108 -0207 -0306 -0405 -0504
No. of shelves ea 5 5 10 15 13
Height mm 1996 1996 1996 1996 2130
Width mm 1000 965 1000 1000 1000
Depth mm 400 400 400 400 260
Max. load per shelf kg 80 80 80 80 80

Accessories:
Designation Dimensions No. per pack. Art. no.
  mm ea. 13053
Shelf 930 x 400 2 -0702
Shelf hook for angling the shelf - 2 -0801
Strip for front edge 930 x 20 1 -0900
Reinforcing strip for the shelf - 1 -1007
Floor bracket for uprights - 1 -1106


Get a quote

  • Open Shelf Stand, 5 Shelves, Width 1000mm £ 157.54 (13053-0108)
  • Open Shelf Stand, 5 Shelves, Width 965mm £ 125.04 (13053-0207)
  • Open Shelf Stand, 10 Shelves £ 241.23 (13053-0306)
  • Open Shelf Stand, 15 Shelves £ 324.92 (13053-0405)
  • Open Shelf Stand, 13 Shelves £ 265.84 (13053-0504)
  • Shelf £ 33.97 (13053-0702)
  • Shelf Hook £ 6.41 (13053-0801)
  • Strip for Front Edge £ 10.34 (13053-0900)
  • Reinforcing Strip £ 7.87 (13053-1007)
  • Floor Bracket £ 16.74 (13053-1106)
