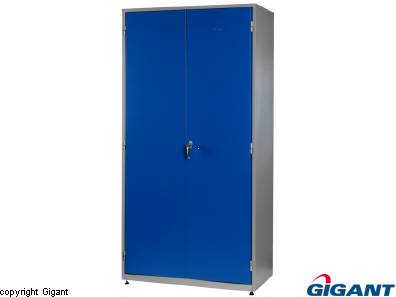

Workshop Cabinet, Fully Welded, Depth 540mm
"Gigant" Workshop cabinet fully welded in very robust design using sheet steel. Powder coated, grey structured finish RAL 7037 on body and blue doors RAL 5005.
Fitted Cupboard to suit your needs. The workshop cabinet is equipped with perforated posts to assemble the shelves, extendable drawers and accessories c/c 900 mm for tool panels etc. On the inside of the doors are perforated reinforcement which can hold tool hooks.
Max load per shelf 50 kg or max 500 kg per cabinet.
Supplied excl. shelves and fittings.
Accessories:
Assa lock set, containing lock cylinder with 2 keys, support plate for the lock and lock loop. Installed by removing the hole knockout in the door.
Electric code lock, containing complete lock with diverse assembly accessories. The lock is installed simply by dismantling the L-handle in the door and drilling a 7 mm hole using the supplied drilling template. The lock can also be mounted in other cabinets and drawers after adaptation.
Lighting for integration in Gigant tool cabinet.
Low energy fluorescent lamp, T5 14 W. Easy installation of the light on the top, on the sides or below the fixed shelf. Several luminaires can be connected in series using the supplied series cable.
Supplied with connection cable equipped with switches and series cable.
| Cabinet | 9761 | -2352 | -6007 | -2659 |
| H x W x D | mm | 2000 x 1020 × 540 | 1500 x 1020 × 540 | 1070 x 1020 × 540 |
| Colour | Grey/Blue | Grey/Blue | Grey/Blue | |
| Rubber mat | - | 9761 | -3160 | |
| Assa Lock set | 9761 | -2360 | -2360 | -2360 |
| Electric code lock | 18432 | -0109 | -0109 | -0109 |
| Lighting | 9761 | -5108 | -5108 | -5108 |
| Shelf. 975 x 440 mm. Max load 50 kg distributed weight or max 500 kg per cabinet. 9761-3152 is supplied in a 2-pack top shelves are supplied individually. |
||
| Shelf, Withouth Protective Edge | ||
| Art no. | 9761 | -3152 |
| Shelf, With Protective Egde | ||
| Art no. | 9761 | -3806 |

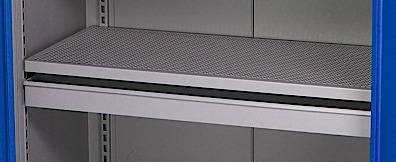

| Shelf, Perforated | ||
| Art no. | 9761 | -3905 |
| Drip Tray, 25 l for the perforated shelf | ||
| Art no. | 9761 | -3921 |
| Shelf Divider. D 445 mm H 175 mm. | ||
| Art no. | 9761 | -3756 |

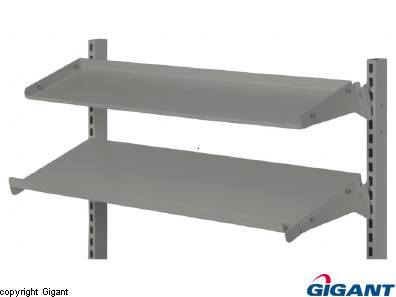

| Shelf. 875 x 210 mm, tiltable including brackets. Max. load 35 kg distributed weight. |
||
| Art no. | 5468 | -0350 |
| Rubber Mat for shelf. | ||
| Art no. | 5468 | -1101 |
| Shelf. 875 x 300 mm, tiltible including consoles. Max. load 50 kg distributed weight. |
||
| Art no. | 9679 | -0340 |
| Rubber Mat for shelf. | ||
| Art no. | 9679 | -2106 |
| Extendable Shelf With Bearing Mounted Runners. 900 x 450 mm. Max. load 25 kg distributed weight, extendable 110%. |
||
| Art no. | 9761 | -3251 |
| Fittings for Extendable Shelf consists of plastic channels modular measurement 150 x 150 mm: 6 with 2 channels 70 mm wide and 10 dividers, 6 with 3 channels 46 mm wide and 10 dividers, 6 with 4 channels 34 mm wide and 10 dividers. |
||
| Art no. | 9761 | -0604 |
| Extendable Draw With Bearing Mounted Runners. 900 x 450 x 100 mm. Max. load 50 kg distributed weight, extendable 110%. |
||
| Art no. | 9761 | -3350 |
| Pallet Truck Base height 100 mm | ||
| Art no. | 9761 | -5009 |
| B x D | mm | 1020 x 540 |

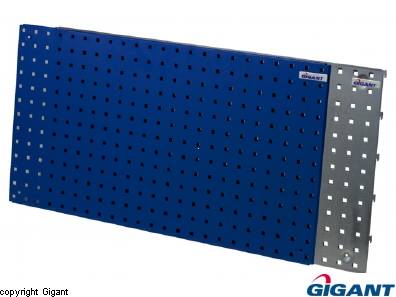

Tool Panel, back with integrated suspension fittings |
|||
| Art no. | 0525 | -0105 | -0345 |
| Colour | Blue | Grey | |
| W x H | mm | 896 x 480 | 896 x 480 |
| For c-c | qty | 1 | 1 |
| Tool Panel, for short side, supplied in pairs left and right with integrated suspension fittings |
|||
| Art no. | 9761 | -3616 | -3657 |
| Colour | Blue | Grey | |
| W x H | mm | 410 x 480 | 410 x 480 |
| For c-c | qty | 1 | 1 |
| Tool Panel, for door | ||
| Art no. | 9761 | -2907 |
| Colour | Blue | |
| B x H | mm | 430 x 475 |
| Suspension Rails for store bins | ||
| Art no. | 9679 | -0629 |
| Colour | Grey | |
| B x H | mm | 900 x 80 |
| Perforated Suspension Strip | ||
| Art no. | 5093 | -0106 |
| Colour | Blue | |
| B x H | mm | 900 x 75 |
| TC-Trays. Consisting of 6 trays with slotted inside. Placed on shelves. |
||
| Art no. | 9761 | -3459 |
| Colour | Grey | |
| Frame, W x D | mm | 945 x 450 |
| Frame, Height | mm | 365 |
| Box, W x D | mm | 450 x 440 |
| Box Height | mm | 100 |
| Fittings for trays in TC trays 3 slotted longitudinal diving walls and 3 slotted dividers. Price/drawer in total 6 for complete fitting of TC-tryas |
||
| Art no. | 9761 | -0950 |
