BASTION – Single skin partitioning system ideal for cost-effective enclosures of exceptional strength and durability, which form a highly secure perimeter.

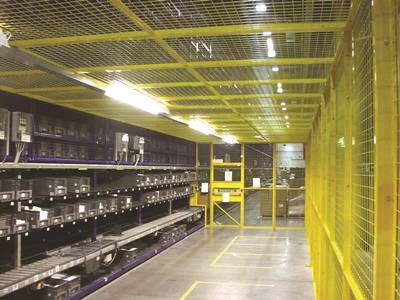

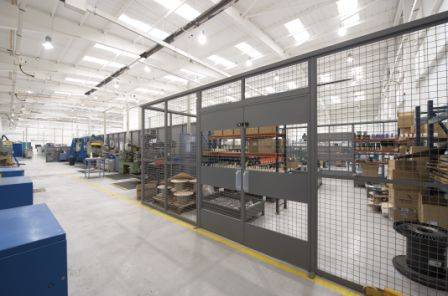

BASTION is an economic heavy duty single skin partition system and with the use of expanded steel sheet gives superb strength and adaptability. Its robust angle frame makes it the ideal choice for creating a highly secure perimeter around any area. In typical applications, BASTION prevents enclosed areas from intrusion, keeping the contents safe.

BASTION panels can be multi-tiered to create a truly demountable system that is ideal for any dynamic workplace. A 40 x 40 x 2.5mm steel angle framework makes for an exceptionally strong single skin partition system.

Lock and handle units are integrated; however there is a selection of locking systems available.



Dimensions (mm);

There are four standard heights available; 2440, 2745, 3000 and 3660.

Panels are available in widths of; 300, 400, 500, 600, 700, 800, 900, 1000 and 1200.



Finish:

All panels are supplied with a TGIC and lead free powder coat, to an average thickness of 70 microns. Partitioning is available in Sandstone BS.08.B.17, Grey RAL 7037, White RAL 9010 or Blue RAL 5010. However, non-standard and corporate colours are available upon request.



Panel Options:

1-Full Steel

2-Steel/mesh/steel

3-Steel/mesh

4-Full mesh

5-Steel/mesh door

6-Drop down hatch

7-Steel/glass/steel

8-Steel/glass

9-Steel/glass door



Please contact us on 0844 381 4688 or email info@gigant.co.uk to discuss your requirements for single skin partitioning.

We can arrange for a sales manager to visit your site, take measurements and produce a complete and detailed quote, complete with 3D drawing, which best suits your needs. We also offer installation services.
